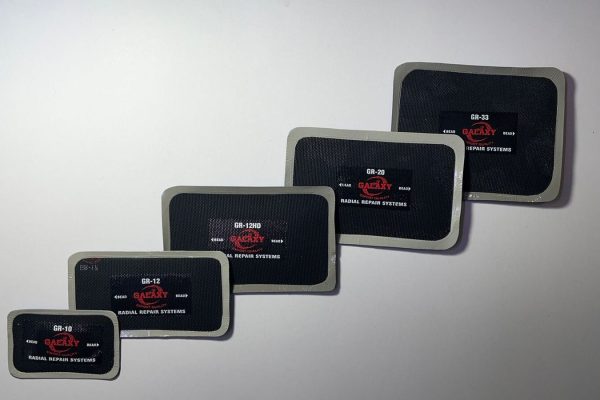

Radial Tyre Repair Patches

Galaxy’s radial repair is the most advanced radial tyre repair system developed and is designed to last the life of the tyre.

The Galaxy radial range caters to injuries in the crown, shoulder or the sidewall area, for all tyres on passenger vehicles, LCVs, trucks, buses, agricultural vehicles and earthmovers.

A special compounding and design, allows the repair unit to flex and resist heat, thereby assuring a permanent repair. Hence, while using the R radial repair, there is no need to apply the repair from non flex to non flex area.

Note: All Galaxy radial repair units must be used in conjunction with the proper injury filler material. Do not install R radial repair units over open injuries

GALAXY RADIAL REPAIRS

Code	Size	Inches	MM	Ply Rating	Pcs./box
810	GR 10	3.2 X 2	80 X 55	1	20
812	GR 12	4.5 X 2.5	110 X 65	1	10
814	GR 14	6 X 3	150 X 80	2	10
815	GR 15	3.5 X 3.00	90 X 75	1	10
820	GR 20	5.3 X 3.25	135 X 83	2	10
822	GR 22	6.89 X 3.25	175 X 83	2	10
824	GR 24	3.62 X 9	92 X 230	2	10
826	GR 26	3.25 X 10	87 X 255	3	10
833	GR 33*	4.18 X 5.18	106 X 131	3	10
835	GR 35*	5.18 X 6.18	131 X 157	4	10
837	GR 37*	5.1 X 7.1	130 X 180	4	10
840	GR 40	4.25 X 8.4	108 X 215	3	10
842	GR 42	5 X 10	127 X 255	4	10
844	GR 44	5.18 X 13.25	131 X 336	4	10
845	GR 45*	9.4 X 7.25	240 X 185	4	10
846	GR 46	5.5 X 16	140 X 405	4	10
850	GR 50	8.25 X 20	209 X 510	5	5
852	GR 52	10 X 20	255 X 510	5	5
855	GR 55*	13 X 10.5	330 X 265	5	5
856	GR 56	10.5 X 26	265 X 660	7	5
880	GR 80	6.2 X 7.8	157 X 200	2	10
882	GR 82	7.7 X 10.25	195 X 260	3	10
884	GR 84	8.7 X 11.75	221 X 300	3	10
886	GR 86	10 X 13.75	255 X 350	3	10

*Only for Crown Injuries

GALAXY RADIAL REPAIRS (HEAVY DUTY)

Code	Size	Inches	MM	Ply Rating	Pcs./box
810H	GR 10 (HD)	3.5 X 2.5	87 X 65	1	10
812H	GR 12 (HD)	2.95 X 5.1	75 X 130	1	10
820H	GR 20 (HD)	5.5 X 3.55	140 X 90	2	10
840H	GR 40 (HD)	4.65 X 8.7	118 X 220	3	10
846H	GR 46 (HD)	5.9 X 16.5	150 X 420	4	10
